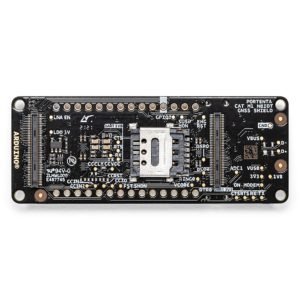

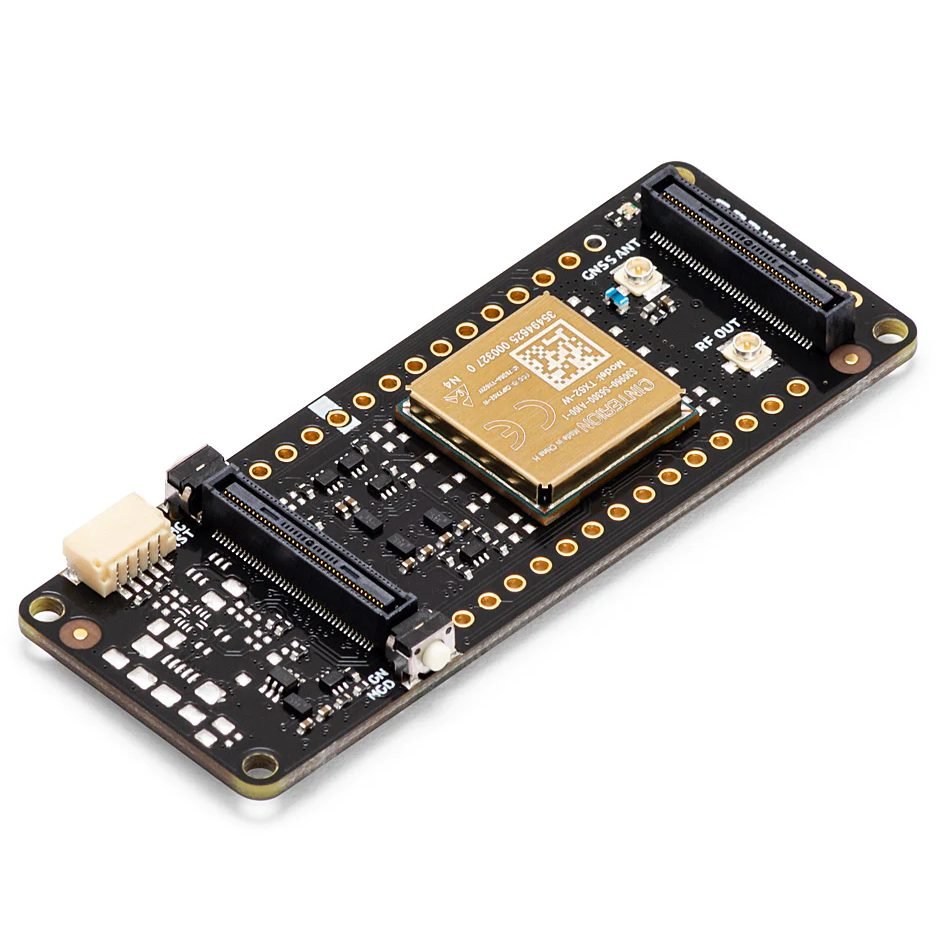

Arduino Portenta Cat. M1/NB IoT GNSS Shield

The Arduino Portenta Cat. M1/NB IoT GNSS Shield is a powerful expansion board designed to bring global connectivity and precise positioning capabilities to compatible Arduino platforms. It supports LTE Cat. M1 and NB-IoT networks, allowing devices to communicate over cellular networks with low power consumption. In addition, it integrates multi-constellation GNSS support including GPS, GLONASS, Galileo, and BeiDou, enabling accurate location tracking anywhere in the world.

This shield is ideal for IoT applications such as asset tracking, remote monitoring, and fleet management. It features a robust communication stack supporting protocols like TCP, UDP, HTTP, FTP, and MQTT with secure TLS/DTLS connections. Designed to work seamlessly with Portenta and MKR boards, it provides an easy way to build connected solutions with real-time data transmission and geolocation capabilities.

Features:

• Supports LTE Cat. M1 and NB-IoT cellular connectivity.
• Multi-GNSS support (GPS, GLONASS, Galileo, BeiDou).
• Integrated TCP/IP stack with multiple communication protocols.
• Secure communication with TLS/DTLS support.
• SMS functionality (send and receive).
• Nano SIM card support for cellular access.
• External antenna support via U.FL connectors..
• Compatible with Portenta and MKR boards
• Built-in RGB status LED and control buttons.

Specifications:

Pinout:

Applications:

• IoT and smart city solutions.
• Asset tracking and logistics.
• Fleet management systems.
• Remote monitoring and telemetry.
• Environmental and agricultural sensing.
• Industrial IoT (IoT).

Packages Included:

• 1x Arduino Portenta Cat. M1/NB IoT GNSS Shield.

Documents:

• SCHEMATICS IN .PDF
• DATASHEET IN .PDF
