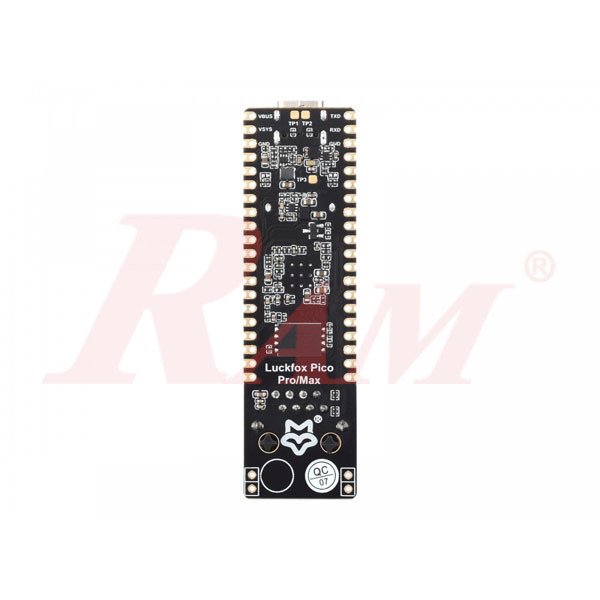

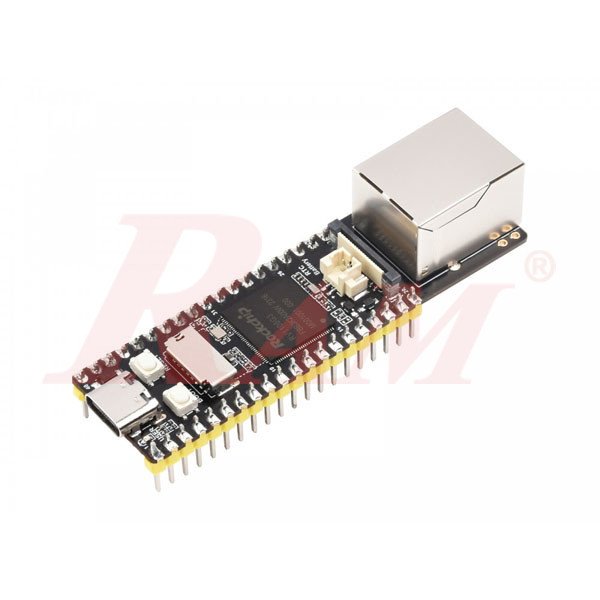

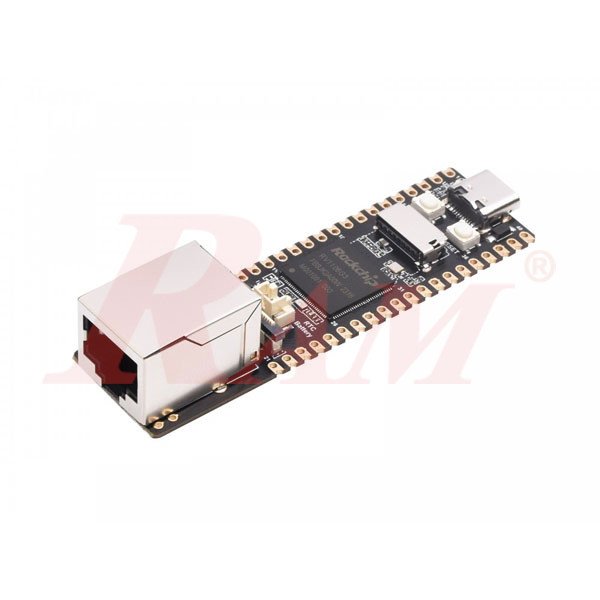

Luckfox Pico Pro/Max RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors,128MB Memory

Luckfox Pico Pro/Max RV1106 Rockchip AI Board ARM Cortex-A7 RISC-V 128M DDR3L

Overview:

A compact, cost-effective development board ideal for smart vision and AIoT applications. Powered by the Rockchip RV1106 SoC, it integrates ARM Cortex-A7 CPU, RISC-V microcontroller, NPU for AI acceleration, and ISP for camera processing. Comes with 128MB DDR2 memory and onboard NAND flash.

Key Features:

• Processor (SoC): Rockchip RV1106
  • ARM Cortex-A7 @ 1.2 GHz
  • Built-in RISC-V MCU
  • 0.5 TOPS NPU (supports INT4/INT8/INT16)
  • Built-in ISP (supports 5MP image processing with HDR, WDR, and noise reduction)
• Memory:
  • 128MB DDR2 RAM
  • 256MB SPI NAND Flash
  • Micro-SD card slot for external storage
• Interfaces:
  • USB 2.0 (Type-C, Host/Device)
  • 10/100 Mbps Ethernet
  • MIPI CSI Camera Interface (2-lane, supports SC3336 3MP camera)
  • 26 GPIO pins via header
• Other Features:
  • Boot and Reset buttons
  • RTC battery connector
  • LED indicator
  • Compact design (USB stick size)

Technical Specifications:

• CPU: Cortex-A7, 1.2GHz
• Co-Processor: RISC-V MCU
• AI Processor (NPU): 0.5 TOPS
• RAM: 128MB DDR2
• Flash Storage: 256MB SPI NAND + MicroSD slot
• ISP: 5MP, HDR, WDR, Noise Reduction
• Ethernet: 10/100 Mbps with PHY
• USB: USB 2.0 (Type-C)
• GPIO: 26 pins
• Power Supply: 5V via USB Type-C
• Operating System: Linux
• Weight: ~20 grams

Applications:

• Smart cameras and surveillance
• AI IoT devices and automation
• Robotics and embedded systems
• Edge computing and machine vision projects
