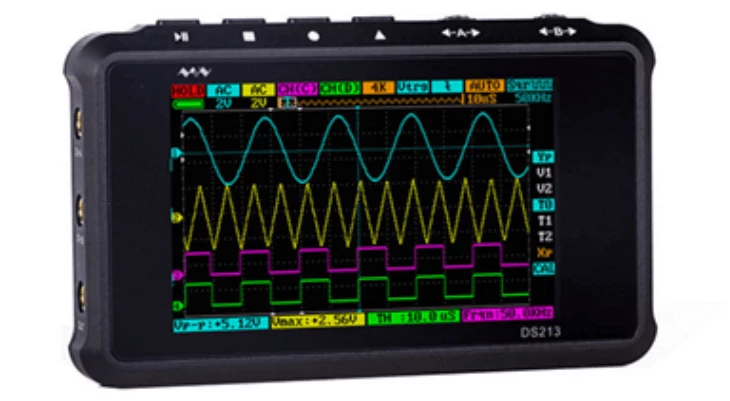

Miniware 4-Channel Mini Oscilloscope
28.300,00 EGP
This is a “5-track, 4-wave line” digital storage oscilloscope for general-purpose electronic engineering tasks and it is based on the ARM Cortex M3 core.
The oscilloscope uses FPGA to manage the external ADC’s control and data cache mode. It provides 4 application partitions for loading and upgrading up to 4 different application firmware. The built-in 8MB USB flash drive allows users to conveniently store waveforms and upgrade the system firmware.
Mini size, lightweight, portable, and handheld; Just about 1/62 of the size of a benchtop oscilloscope; All operations can be done with 4 buttons + 2 encoders.
Up to 100M Sa/s real-time sampling rate instead of the equivalent sampling rate.
4 input channels, 2 digital + 2 analog channels; 1 output channel. Each channel can be freely switched; Supports user-defined outputs like waveform, frequency, duty cycle, etc., suitable for various occasions.
The waveform data can be stored, and the waveform analysis and comparison are more efficient and intuitive; +2% voltage accuracy and +1‰ frequency accuracy; Repeatedly polish the front-end analog circuit to optimize the noise floor to ensure accurate and reliable measurement.
It is suitable for experimental teaching in schools, electronic maintenance, engineering applications, and so on.
Features
- Based on the ARM Cortex M3 core
- Mini size, lightweight
Applications
- Experimental teaching in schools
- Electronic maintenance
- Engineering applications
Specification
- CPU: ARM Cortex M3
- FIFO & Control: FPGA
- ADC: HWD9288-100
- Analog Channels: 2（[CH_A] [CH_B]）
- Digital Channels: 2（[CH_C] [CH_D]）
- Operation Channel: INV [CH_A], INV [CH_B], [CH_A]+[CH_B], [CH_A]-[CH_B], [CH_C]&[CH_D], [CH_C] | [CH_D]
- Vertical Sensitivity: 10mV-10V/div (1-2-5 STEP) (using X1 probe)
100mV-100V/div (1-2-5 STEP) (using X10 probe) - Vertical Resolution: 8 bits
- Sample Memory Depth: 4 channels, 4*4K
- Coupling: DC, AC
- Max Input Voltage: ±40Vpp (using X1 probe)
±400Vpp (using X10 probe) - Trigger Types: Ascend/Descend Edge Trigger Mode, Pulse Width Trigger, Logic Trigger
- Trigger Mode: automatic, standard, single, instant scan
- Signal Source:
Square wave: 20 gears 3Vpp signal source from 10Hz to 8MHz
Sine wave, triangle wave, sawtooth wave: 11 gears of 3Vpp signal source from 10Hz to 20KHz - File Storage Capacity: built-in 8M USB disk
- File Storage Format: BMP, BUF, CSV
- Automatic Measurement Type: maximum value, minimum value, peak-to-peak value, average value, effective value, frequency, period, pulse width, duty cycle
- Cursor Measurement: time value, amplitude value
- Display Mode: 4 lines display:
Line 1: [CH_A], HIDE
Line 2: [CH_B], HIDE
Line 3: [CH_C], REC_1, REC _2, REC _3, REC _4, HIDE
Line 4: [CH_D], [CH_A]+[CH_B], [CH_A]-[CH_B], [CH_C]&[CH_D], [CH_C] | [CH_D], HIDE - Sampling Mode: real-time sampling
- Sampling Rate: 100M Sa/s
- Battery Power Supply: 1000mAh
- Dimensions: 99.5mm (length) x58.5mm (height) x13.5mm (thickness)
Shipping List
- Mini 4 Channel Oscilloscope x1
- x1 / x10 Probe x2
- USB Cable x1
- Hex Wrench x1
- Instruction x1
