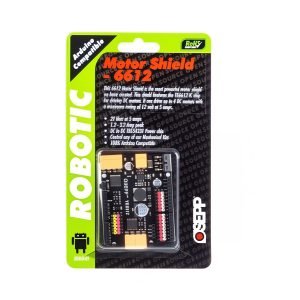

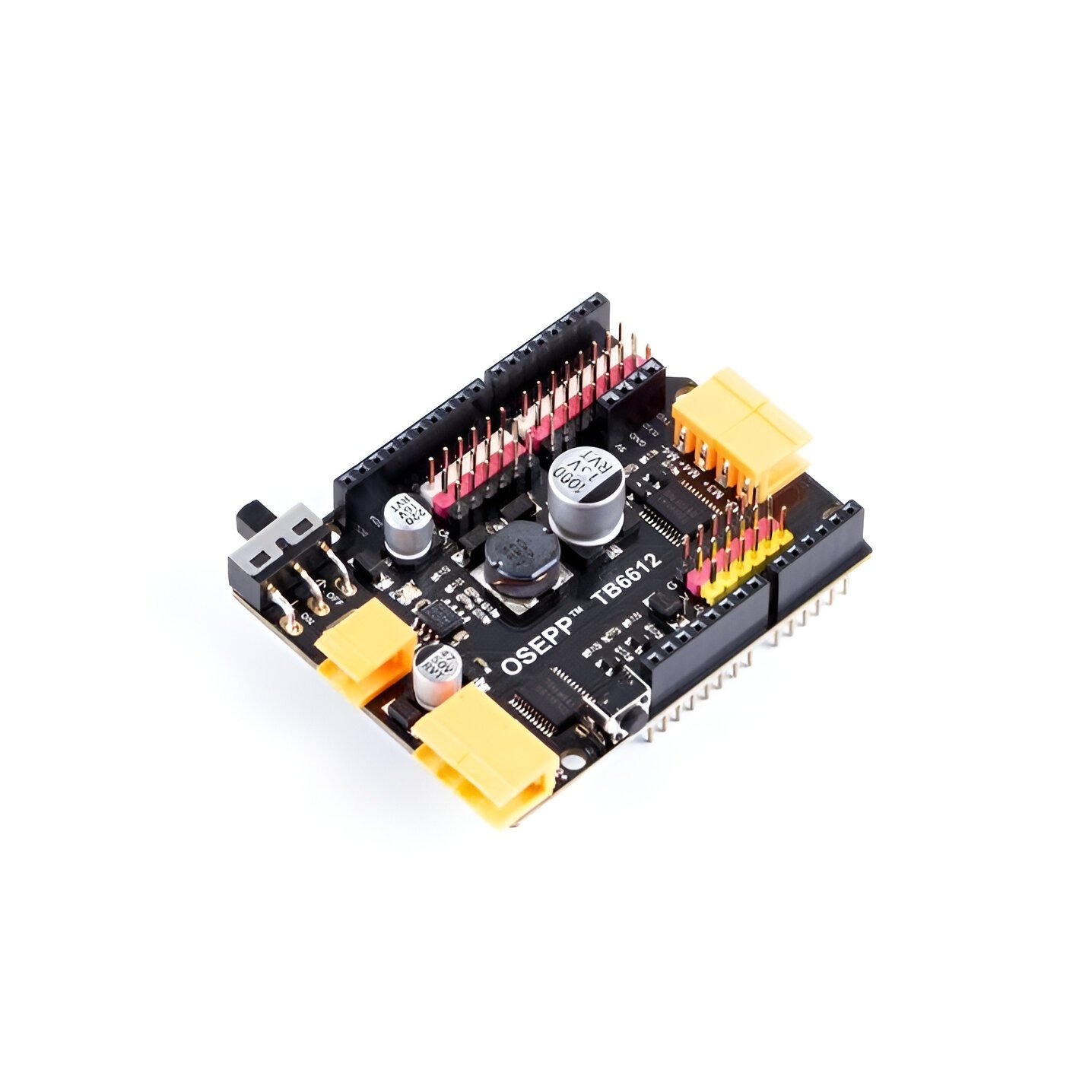

OSEPP TBSHD-01 Motor Driver Shield 6122

OSEPP TBSHD-01 Motor Driver Shield 6122

The OSEPP TBSHD-01 Motor Driver Shield 6122 is a powerful and reliable solution for controlling DC motors and stepper motors in Arduino-based projects. With its dual H-Bridge design, this motor driver shield can control two motors simultaneously, making it ideal for robotics, automation, and other motor-driven applications. It is designed to be stacked directly on top of an Arduino board, providing easy integration and minimal wiring.

Features:

• Dual H-Bridge design for controlling two DC motors or stepper motors.
• Supports up to 2A continuous current per motor.
• Thermal shutdown and overcurrent protection for safety.
• Easy-to-stack design, compatible with Arduino boards.
• Provides multiple pins for connecting sensors and actuators.

Specifications:

Applications:

• Ideal for controlling motors in robotics and automation systems.
• Perfect for creating mobile robots, moving platforms, and actuators.
• Used in projects requiring precise control of DC motors or stepper motors.
• Suitable for DIY projects, educational applications, and prototyping.

Package Include:

1x OSEPP TBSHD-01 Motor Driver Shield 6122.

Documents:

Schematic
