TiggerBot II Robot tank

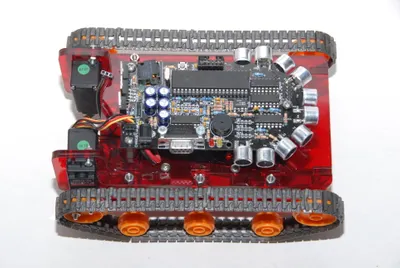

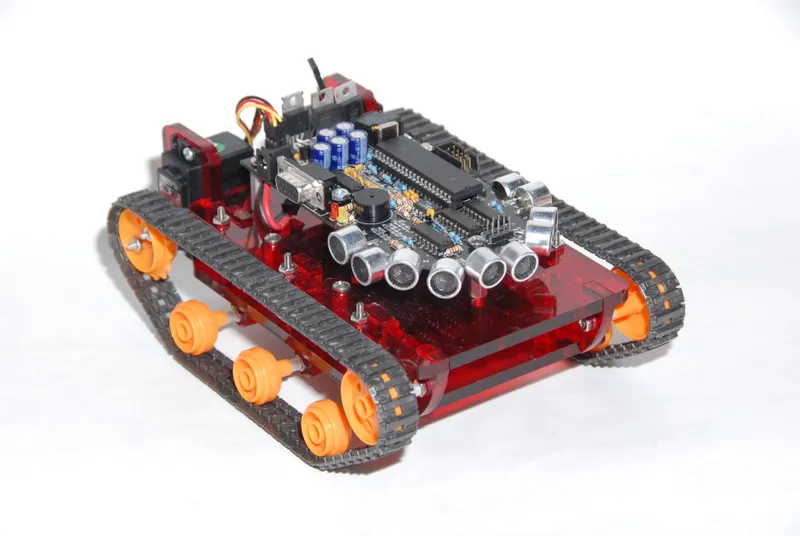

TiggerBot II is a small treaded robot platform that can work with either bluetooth or autonemous
a firing tower can be added to shoot gel beeds
laser pointer and a camera can be added if required
automatic obstical avoidance

Specifications:
> chassis material: cnc laser cut acrylic
> drive motors: 2x continuous-rotation rc servo
> battery: 2.2Ah 9.6v rechargeable NiMH
> nav sensors: 5 way ultrasonic sonar
> cpu: AVR Mega32, 16MHz
> programming: RS-232 serial port bootloader
> code: written in c, compiled with gcc-avr
> expansion port: 5v/1A, gnd, 2x adc, i2c

TiggerBot II’s main components are all computer designed and custom manufactured.

The plastic components are designed in solidworks. They are then separated, duplicated, packed together for efficiency, and printed as a 1:1 eps. This is sent to a plastic manufacturer to be cut from acrylic.

The circuit board is designed in eagle cad and manufactured by a pcb prototype supplier.

chassis: 1 plastic set
motors: 2 HS-425BB
treads: Tamiya 70100 kit.
battery: 8 cell AA battery pack

fasteners (mcmaster carr):

standoffs: 4 (3/4″ 6-32 standoff), 8 (6-32 x 3/8″ screw)
shafts: 8 (4-40 x 1 1/8″ screw), 16 (4-40 nut), 8 (spacer)
suspension: 6 (4-40 x 1 1/2″ screw), 6 (4-40 nut), 6 (nylon flange spacer), 6 (angle bracket), 6 (springs)
servos: 4 (4-40 x 1/2″ screw), 4 (4-40 nut)
drive cogs: 4 (4-40 x 1/2″ screw), 8 (4-40 nut)
pcb mount: 5 (3/4″ 6-32 standoff), 10 (6-32 x 3/8″ screw)
