Ai Thinker AiPi-CAM-D200 Camera Core Development Board
1.200,00 EGP
| Category | Details |
|---|---|
| Camera | |
| Model | GC2145 |
| Resolution | 2MP (1600×1200 pixels) |
| Focal Length | 2 meters |
| Module | |
| Model | Ai-M61-32S |
| CPU | 32-bit RISC-V, up to 320MHz, with Floating Point Unit (FPU) and DSP |
| Memory | 4MB pSRAM, 532KB SRAM, 128KB ROM, 4Kb eFuse |
| Wireless Protocols | WiFi 802.11b/g/n/ax, BLE 5.3, Thread |
| Interfaces | DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO |
AiPi-CAM-D200 with Ai-M61-32S Module – ESP32 Camera Development Board (Compatible With ESP32 CAM)
Overview
The AiPi-CAM-D200 is a compact and powerful camera development board designed by Ai-Thinker. It integrates the Ai-M61-32S module and a 2-megapixel GC2145 camera, making it suitable for IoT, embedded vision, smart home, and wireless camera applications. The board includes a built-in micro-SD (TF) card slot for local storage, rich peripheral interfaces, and advanced wireless connectivity.
Key Features
- Integrated Ai-M61-32S RISC-V processor (up to 320 MHz)
- Built-in GC2145 2 MP camera
- Supports WiFi 802.11 b/g/n/ax (WiFi 6)
- Supports Bluetooth Low Energy 5.3
- Onboard micro-SD (TF card) slot for image/video storage
- Fully pin-compatible with previous Ai-Thinker Ai-WB1-32S-CAM boards
- Wide range of exposed GPIOs for expansion and custom development
- Suitable for IoT, security, smart home, and wireless video applications
Technical Specifications
Camera Specifications
- Sensor Model: GC2145
- Resolution: 2 Megapixels (1600 × 1200)
- Field of View: Approximately 140°
- Lens Focal Length: ~2 mm
- Interface: 24-pin DVP interface
- Typical Power Consumption: ~180 mA
- Standby Power: < 200 µA
- Typical Frame Rates:
- 640 × 480 → ~17 fps
- 320 × 240 → ~27 fps
- 160 × 120 → ~52 fps
Processor / Ai-M61-32S Module
- CPU: 32-bit RISC-V, up to 320 MHz
- Memory:
- 532 KB SRAM
- 4 MB pSRAM
- 128 KB ROM
- 4 KB eFuse
- Wireless Connectivity:
- WiFi 802.11 b/g/n/ax
- BLE 5.3
- Thread protocol support
- Security Features:
- AES, SHA hardware acceleration
- RSA/ECC cryptography
- True random number generator
- Secure Boot and Secure Debug
- TrustZone
- On-the-fly AES decryption for external flash

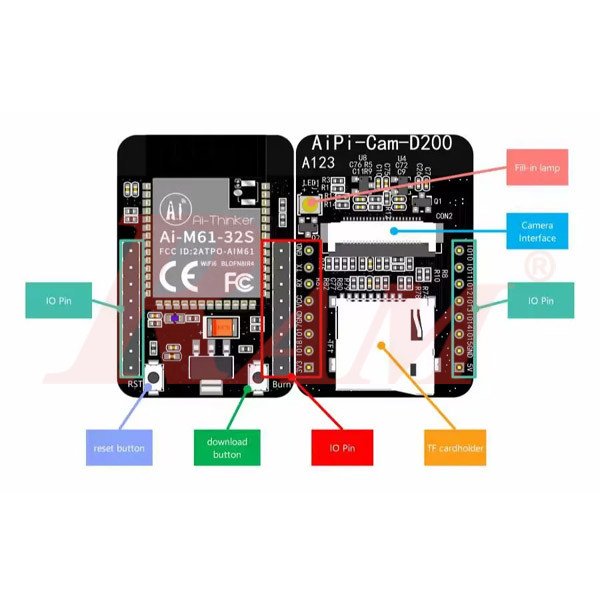

Board Features
- Power Input: 5 V with onboard 3.3 V regulator
- Module Operating Voltage: 3.3 V
- Storage: Micro-SD (TF) card slot
- Interfaces / Peripherals:
- UART, SPI, I²C, I²S
- PWM
- GPADC / GPDAC
- Audio Codec
- USB 2.0
- Ethernet EMAC
- SD/MMC
- LCD Display Interfaces (QSPI/DBI/RGB)
- DVP Camera Interface
- Multiple general-purpose GPIO pins
Dimensions
- Board Size: Approximately 40.1 × 27 × 6.3 mm
- Pin Pitch: Standard 2.54 mm
- Breadboard friendly
- Includes power LED and user-programmable indicator LED
Operating Conditions
- Operating Temperature: -40°C to +85°C
- A stable power supply is required for the camera and wireless operation
Applications
- Smart home security cameras
- Wireless video transmission systems
- IoT camera nodes and monitoring devices
- Industrial and environmental monitoring
- Facial recognition, QR scanning, and edge-AI vision tasks
- Custom embedded vision projects requiring camera + wireless + storage
