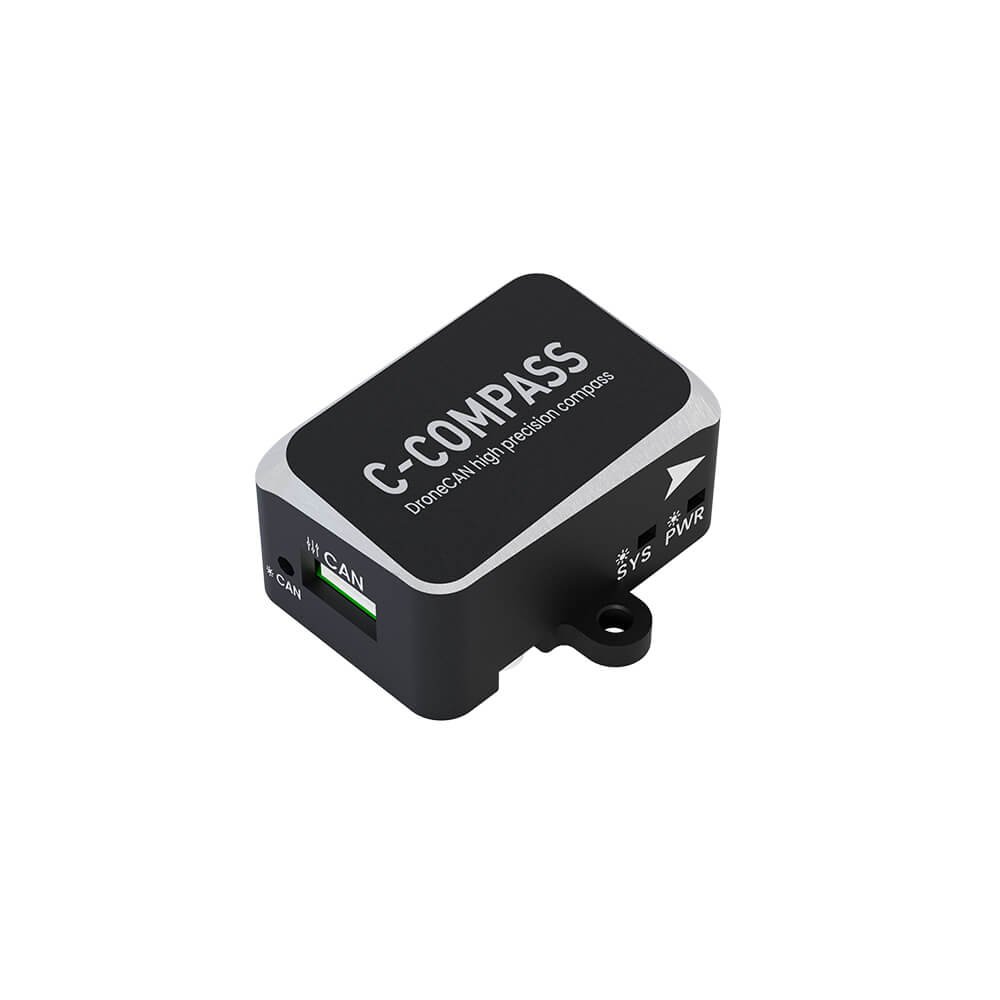

CUAV C-Compass RM3100 High-precision Sensor
8.900,00 EGP
CUAV C-Compass RM3100 High-precision Sensor
The CUAV C-Compass RM3100 High-Precision Sensor is an CUAV external magnetometer module engineered for professional UAV and robotics applications. It integrates an automotive-grade PNI RM3100 magneto-inductive sensor and an STM32F4 processor, providing extremely low noise and robust interference resistance. this module is “high-performance, industrial-grade” compassing solution, and it delivers a stable heading reference with far better resolution and lower noise than typical Hall-effect compasses.
Features:
- High-performance, industrial-grade interference resistance.
- Proprietary M4C software architecture.
- Supports DroneCAN protocol.
- Compatible with ArduPilot and PX4 platforms.
Specifications:
| C-Compass | |
|---|---|
| MCU | STM32F412 |
| Sensor | RM3100 |
| Software Architecture | CUAV M4C |
| Protocol | DroneCan/UAVCAN |
| Communication rate | 2Mb |
| Refresh rate | 80Hz |
| Noise | 15nT |
| Accuracy | 0.25° (effective value) |
| Repetition accuracy | 0.05° |
| Resolution | 0.01° |
| Sensitivity | 13nT |
| Range | -800 μT to +800 μT |
| Controller type | PX4/ArduPilot(CUAV/Pixhawk e.g.） |
| Interface | GHR-04V-S |
| Operating Voltage | 4.75-5.3V |
| Operating temperature | -20 to 80℃ |
| Operating humidity | 5%~95% (non-condensing) |
| Casing material | Aluminum alloy |
| Weight | 13g |
Applications:
- Precision heading reference for UAVs (multi-rotors, fixed-wing, VTOL) running PX4 or ArduPilot.
- External compass for autonomous drones and robotic vehicles (surveying, mapping, inspection, delivery) where EMI is high.
- Industrial and commercial UAVs requiring magnetometer redundancy and high‐accuracy navigation.
- Ground robots and rovers needing robust orientation data in magnetically noisy environments.
- Research and academic platforms in aerospace or geophysics where precise magnetic sensing is critical.
Package Include:
- 1x CUAV C-Compass RM3100 High-Precision Sensor module (droneCAN magnetometer).
- 1x 35 cm DroneCAN cable (4-pin JST-GH) for connecting to autopilot CAN port.
- 2x M3 double-sided foam adhesive tape pads (for mounting).
