OSEPP NAN-01 Nano ATMEGA328P Microcontroller Board

OSEPP NAN-01 Nano ATMEGA328P Microcontroller Board

The OSEPP NAN-01 Nano ATMEGA328P Microcontroller Board is a compact and versatile microcontroller that brings the power of Arduino to smaller, space-constrained projects. Based on the ATMEGA328P microcontroller, this board offers all the features and functionality of the Arduino Uno but in a more compact form factor. It provides 14 digital I/O pins, 8 analog inputs, and a USB interface for easy programming.

Features:

• Based on the ATMEGA328P microcontroller for high-performance operation.
• 14 digital I/O pins, 8 analog inputs, and a USB interface for programming.
• Compact design, perfect for small-scale and portable projects.
• Fully compatible with the Arduino IDE and libraries.
• Mini-USB interface for easy programming and power.
• 8-bit AVR RISC-based microcontroller running at 16 MHz.
• Single mini-USB connector for both power and serial communication.
• Form factor is breadboard friendly.
• Less than 1/3 the size of the OSEPP™ Uno.
• Two extra analog input pins compared to the OSEPP™ Uno.
• Compatible with existing Arduino software libraries.

Specifications:

Applications:

• Compact IoT devices for sensor data collection.
• Wearable electronics requiring small form factors.
• Educational projects teaching microcontroller basics.
• Prototyping analog sensor interfaces in automation.
• Breadboard-based experiments with digital and PWM outputs.
• Standalone controllers in hobbyist robotics.

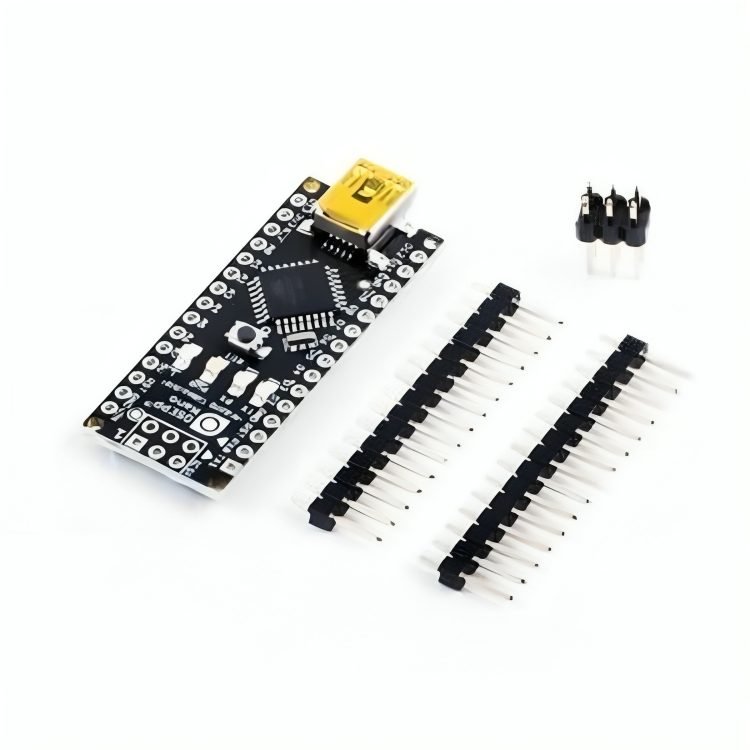

Package Include:

• 1x  OSEPP NAN-01 Nano ATMEGA328P Microcontroller Board
• 2x header strips (14 pins each)
• 1x  shorter pin header strip

Documents:

Schematic
