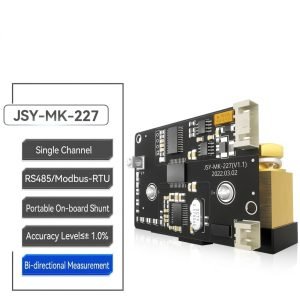

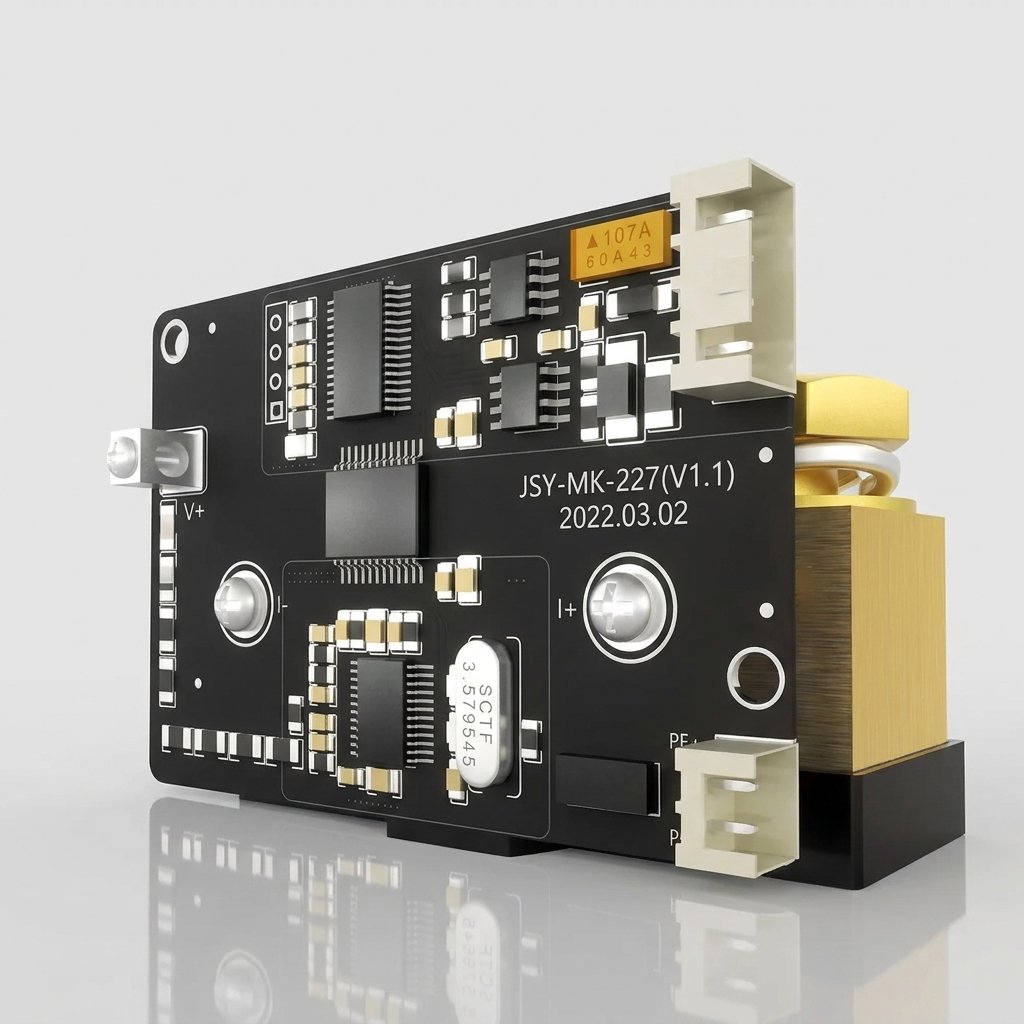

JSY-MK-227 100A RS-485 DC Single Channel Acquisition Module
4.860,00 EGP
JSY-MK-227 100A RS-485 DC Single Channel Acquisition Module
The JSY-MK-227 100A RS-485 DC Single Channel Acquisition Module is a compact and highly integrated DC power monitoring solution designed for accurate measurement and transmission of electrical parameters in DC systems. Featuring an onboard precision shunt and a dedicated energy measurement chipset, the module provides reliable monitoring of voltage, current, power, and accumulated energy consumption while maintaining excellent measurement stability and accuracy.
Features:
- Accurate DC voltage, current, power, and energy measurement.
- Integrated onboard 100A precision shunt.
- Single-channel DC acquisition module.
- RS-485 communication interface.
- Supports Modbus-RTU communication protocol.
- Dedicated energy measurement IC with 24-bit ADC sampling.
- Class 1 energy metering accuracy.
- High-voltage isolation design up to 4000VDC.
- Compact PCB-mount construction.
- Low power consumption.
Specifications:
| Parameter | Value |
|---|---|
| Product Model | JSY-MK-227 |
| Manufacturer | Shenzhen Jiansiyan Technologies |
| Measurement Type | DC Single-Channel |
| Voltage Range | DC1-400V |
| Voltage Resolution | 0.01V |
| Current Range | DC50mA-100A |
| Current Resolution | 0.01A |
| Active Power Accuracy | IEC62053-21Class1 |
| Energy Accuracy | IEC62053-21Class1 |
| Overall Accuracy | ≤±1.0% |
| Measurement Parameters | Voltage,Current,ActivePower,PowerFactor,Frequency,Temperature,Humidity |
| Communication Interface | RS485 |
| Communication Protocol | Modbus-RTU |
| Default Baud Rate | 9600bps |
| Data Format | N,8,1 |
| Default Communication Address | 1 |
| Power Supply | DC5V/DC12V |
| Power Consumption | <80mA |
| Operating Temperature | -20°C~+60°C |
| Module Dimensions | 65mmx45mmx43mm |
| Mounting Type | Screw Terminal |
Configuration:
Applications:
- DC power monitoring systems.
- EV charging stations.
- Battery energy storage systems.
- Solar power installations.
- Telecommunications equipment.
- Industrial automation systems.
- Railway power monitoring.
- Energy management systems.
- DC distribution cabinets.
- Power consumption monitoring and analysis.
Package Include:
- 1x JSY-MK-227 100A RS-485 DC Single Channel Acquisition Module
- 1x 4pin Connector
